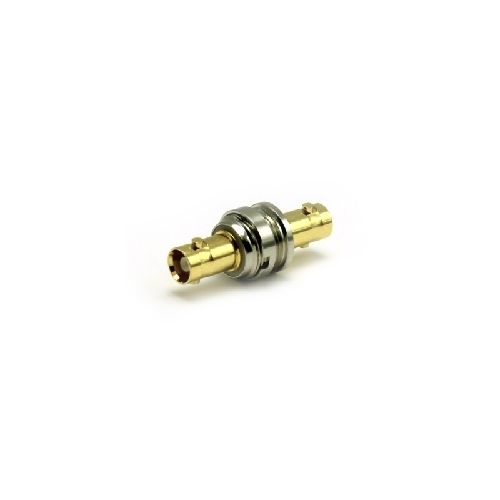

67-503-D126 | 67503D126 | Micro BNC Jack /Jack Adaptor
Micro BNC 75 ohm Insulated with a metal thread Bulkhead Jack to Jack Adaptor, designed for Full HD 1080p applications
| Complete Electronics Part No. | 67503D126 |
|---|---|
| Manufacturers Part No. | 67-503-D126 |
| Male/Female: | Jack |
| Type | BNC Jack Adaptor |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
- Return Loss: -25dB@12GHz
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 3.08g
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating Gold
- Outer Bulkhead Thread Plating: Nickel
- Bulkhead Nut Plating: Nickel
- Pack Size 1
