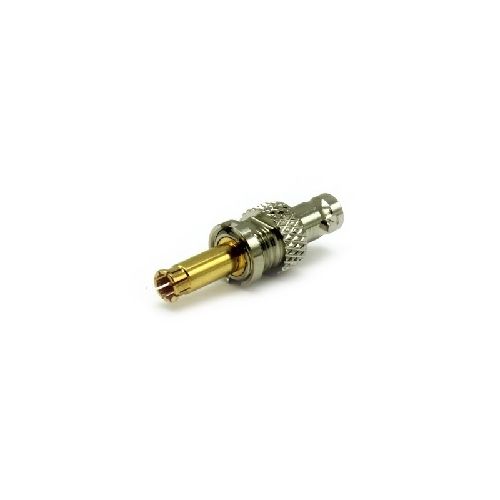

67-512-B66 | 67512B66 | Micro BNC Plug /Jack Adaptor
Micro BNC 75 ohm Bulkhead Push-On (without the bayonet cap ) Plug to Jack Adaptor, Full HD 1080p applications and general use up to 12GHz.
| Complete Electronics Part No. | 67512B66 |
|---|---|
| Manufacturers Part No. | 67-512-B66 |
| Male/Female: | Jack |
| Type | BNC Jack Adaptor |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
- Return Loss: -17dB@12GHz
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 3.0g
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact Jack : Brass
- Outer Contact Plug: Beryllium Copper
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Jack Plating: Nickel
- Outer Contact Plug Plating: Gold
- Pack Size 1
