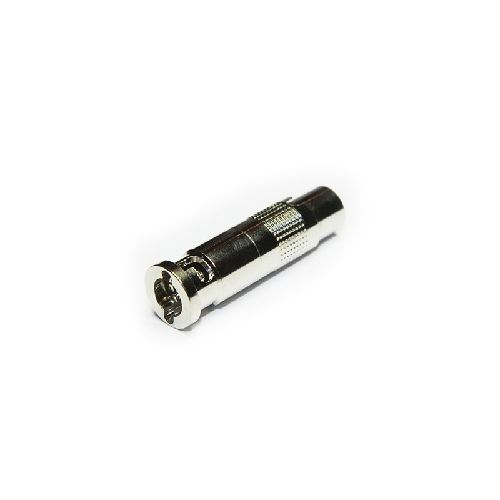

67-863-B36 | 67863B36 | Micro BNC Plug Termination
Micro BNC 75 ohm plug termination, return loss @6GHz of -23dB and @ 12Ghz of -26dB. With gold plated centre contact.
| Complete Electronics Part No. | 67863B36 |
|---|---|
| Manufacturers Part No. | 67-863-B36 |
| Male/Female: | Plug |
| Type | Terminator |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 12GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 45.3g
- Mating Force: 10N max
- Un-coupling Force: 10N max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact Jack : Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Pack Size 1
