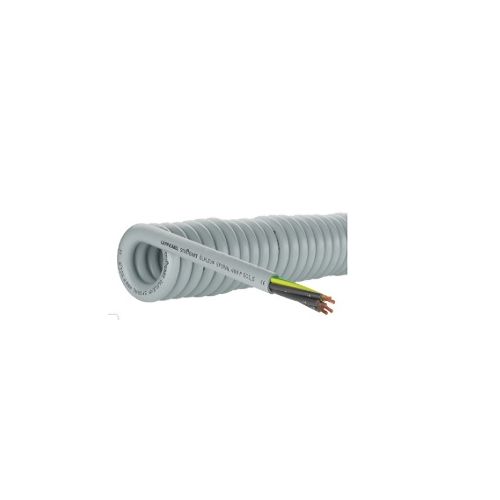

70002622 | OLFLEX SPIRAL 400 P 2X0,75/500 | Spiral Cable
Olflex PUR spiral cable, Number of cores: 2, Conductor diameter: 0.75mm², Spiral Length extended: 1500mm
| Complete Electronics Part No. | 70002622 |
|---|---|
| Manufacturers Part No. | 70002622 |
| Number of Conductors: | 2 |
| Conductor Size: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Spiral Length Extended: | 1500mm |
| Spiral Length Unextended: | 500mm |
Description
Olflex PUR spiral cable
Number of cores: 2
- Conductor diameter: 0.75mm²
- Spiral Length extended: 1500mm
- Spiral Length unextended: 500mm
- Cable Diameter: 5.6mm
- Spiral Outer Diameter: 19.5mm
- Without protective conductor
- Nominal Voltage 300 / 500V
- With increased chemical resistance
- Oil- and abrasion-resistant
- High mechanical strength
- Fine-wire strand made of bare copper wires
- Core insulation: Special PVC P8/1
- Core ID: Black with white numbers acc. to VDE 0293-1
- Temperature Range, Flexible use: +5°C to +50°C
