70002631 | OLFLEX SPIRAL 400 P 3G0,75/2000 | Spiral Cable
Olflex PUR spiral cable, Number of cores: 3, Conductor cross section: 0.75mm², Spiral Length extended: 6000mm, Length retracted: 2000mm
| Complete Electronics Part No. | 70002631 |
|---|---|
| Manufacturers Part No. | 70002631 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Spiral Length Extended: | 6000mm |
| Spiral Length Unextended: | 2000mm |
Description

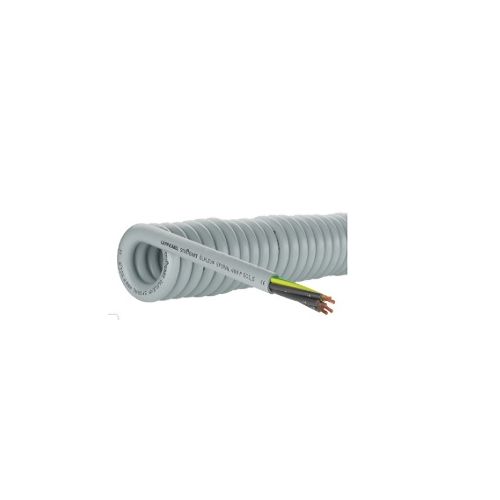

70002631 ÖLFLEX® SPIRAL 400 P (Grey) Cable
Spiral cable; 3G0.75; For use in dry, damp or wet conditions
Product Design
Highly flexible cable design allows the cable to be extended 3 times
Core marking according to VDE 0293-1, Black cores with white numbers
Cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions, certain oils, and to abrasion
Spiral 400 P are connection cables with an outer polyurethane sheath for flexible use in dry, damp and wet surroundings
With protective conductor
Number of Cores: 3
Conductor cross section: 0.75 mm²
Conductor cross section: 0.75 mm²
Nominal outer cable diameter: 5.9 mm
Outer Diameter of spiral: 20 mm
Weight: 0.828 kg
Assembly Length: Retracted: 2000 mm, Extended: 6000 mm
Length of the straight ends: 200 mm, 600 mm
Temperature, occasionally moved: 5°C to 50°C
Temperature, occasionally moved: 5°C to 50°C
Electrical / Insulation Parameters
Test Voltage: 4kV
Nominal voltage: U0/U: 300/500 V AC rms according to IEC
Conductor material: BareCopper Stranding
Conductor design: IEC 60228 class 5 fine wire
Core insulation: Polyvinylchloride (PVC)
Core identification: Black Cores with White Numbers, VDE 0293-1
Conductor design: IEC 60228 class 5 fine wire
Core insulation: Polyvinylchloride (PVC)
Core identification: Black Cores with White Numbers, VDE 0293-1
Outer sheath material: Polyurethane - (PUR)
Outer sheath colour: Grey
Product Features
Flame retardant - No
Halogen Free - No
Halogen Free - No
Hydrolysis resistant - Yes
Chemical resistant - Yes
Chemical resistant - Yes
Oil Resistant - Yes to IEC 60811-2-1
UV Resistant - Yes to EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Weather resistant - Yes
PWIS-free - Yes to VDMA 24364-B2-L
PWIS-free - Yes to VDMA 24364-B2-L
General Information
Durable, resistant product thanks to the outer sheath PUR material that is resistant to abrasions, notches and cuts
Suitable for use in damp interiors or outdoors
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
High restoring forces
Increased durability under harsh conditions
CE Marked, EAC-certified
Lapp part number: 70002631
Assembly Length: 2000 mm to 6000 mm
Assembly Length: 2000 mm to 6000 mm
