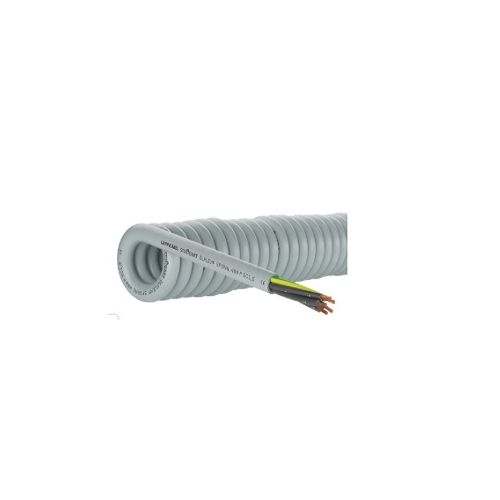

70002637 | OLFLEX SPIRAL 400 P 4G0,75/2000 | Spiral Cable
Olflex PUR spiral cable, Number of cores: 4, Conductor diameter: 0.75mm², Spiral Length extended: 6000mm
| Complete Electronics Part No. | 70002637 |
|---|---|
| Manufacturers Part No. | 70002637 |
| Number of Conductors: | 4 |
| Conductor Size: | 0.75mm² |
| Rated Voltage: | 300 / 500 V |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Spiral Length Extended: | 6000mm |
| Spiral Length Unextended: | 2000mm |
Description
Olflex PUR spiral cable
Number of cores: 4
- Conductor diameter: 0.75mm²
- Spiral Length extended: 6000mm
- Spiral Length unextended: 2000mm
- Cable Diameter: 6.4mm
- Spiral Outer Diameter: 21mm
- With protective conductor
- Nominal Voltage 300 / 500V
- With increased chemical resistance
- Oil- and abrasion-resistant
- High mechanical strength
- Fine-wire strand made of bare copper wires
- Core insulation: Special PVC P8/1
- Core ID: Black with white numbers acc. to VDE 0293-1
- Temperature Range, Flexible use: +5°C to +50°C
