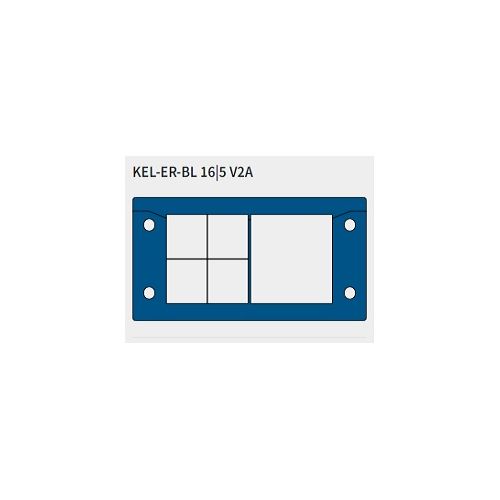

70004.200 | KEL-ER-BL 16-5 V2A | Split Cable Entry Plate
KEL-ER-BL 16/5 V2A, maximum 5 cables, split cable entry frames for the food industry, for cables with or without connectors
| Complete Electronics Part No. | 70004200 |
|---|---|
| Manufacturers Part No. | 70004.200 |
| Product Type | KEL-ER BL |
| Number of Cables | max 5 |
| Enclosure Shape | Rectangular |
Description
KEL-ER-BL 16/5 V2A
For routing cables with or without connectors
- Number of Cables: max 5
- Length: 120mm
- Width: 58 mm
- Depth: 17 mm
- Suitable for grommets: 4 x KT Small, 1 x KT Large
- Cut-out size: 86 × 36mm
- Operating temperature -40°C to 140°C
- Number of Screw Holes: 4
- Colour: Blue (Similar to RAL 5005)
- Automatic sealing and strain relief for the cable
- Ingress Protection: IP65, IP64
- Material: Polyamide
- UL94-V0, self-extinguishing
- Vibration proof, UV-resistant, silicone free, halogen free, anti-corrosive
- Flat blue rubber gasket included in shipment
- Part No. 70004.200
- Package quantity: 10
