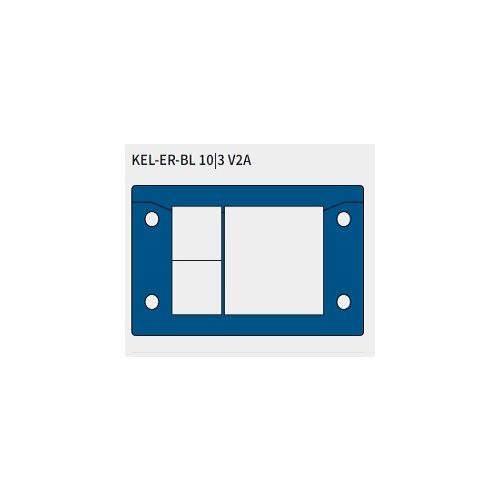

70007.200 | KEL-ER-BL 10-3 V2A | Split Cable Entry Plate
KEL-ER-BL 10/6 V2A, maximum 3 cables, split cable entry frames for the food industry, for cables with or without connectors
| Complete Electronics Part No. | 70007200 |
|---|---|
| Manufacturers Part No. | 70007.200 |
| Product Type: | KEL-ER BL |
| Number of Cables: | max 3 |
| Enclosure Shape: | Rectangular |
Description
KEL-ER-BL 10/3 V2A
For routing cables with or without connectors
- Number of Cables: max 3
- Length: 98.3mm
- Width: 58 mm
- Depth: 17 mm
- Suitable for grommets: 2 x KT Small, 1 x KT Large
- Cut-out size: 65 × 36mm
- Operating temperature -40°C to 140°C
- Number of Screw Holes: 4
- Colour: Blue (Similar to RAL 5005)
- Automatic sealing and strain relief for the cable
- Ingress Protection: IP65, IP64
- Material: Polyamide
- UL94-V0, self-extinguishing
- Vibration proof, UV-resistant, silicone free, halogen free, anti-corrosive
- Flat blue rubber gasket included in shipment
- Part No. 70007.200
- Package quantity: 10
