70250201 | Lapp Epic® Ultra H-B 6 TG LB Housing

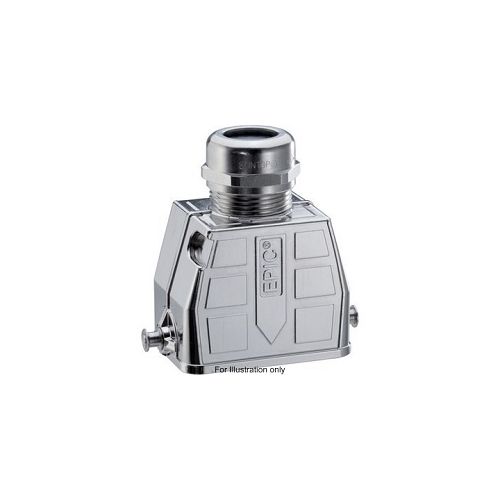

Lapp Epic® Ultra H-B 6 TG LB Housing
More Information
Complete Electronics Part No. 70250201
Manufacturers Part No. ULTRA H-B 6 TG-LB 9-17
Lapp Rectangular Type Housing
Lapp Rectangular Range H-B 6 Housing
Cable Entry: Straight
Mounting: Cable
Lever Type Bolts for Single Lever
Description

70250201 / ULTRA H-B 6 TG-LB 9-17

Lapp Epic® Ultra H-B 6 TG LB Housing

  • Housing Hood
  • Bolts For Single Lever
  • Salt Spray Resistance
  • Cable Entry: Straight
  • Housing Material: Nickel Plated Zinc Die Casting
  • Lever And Bolt Material: Stainless Steel
  • Cable Gland Body: Nickel Plated Brass
  • Clamping Range: 9 - 17mm
  • Ingress Protection: IP65
  • Temperature Range: -40°C to +100°C
  •                    ***Inserts & Contacts to be purchased separately ***
