70250205 | Lapp Epic® Ultra H-B 6 TS LB Housing

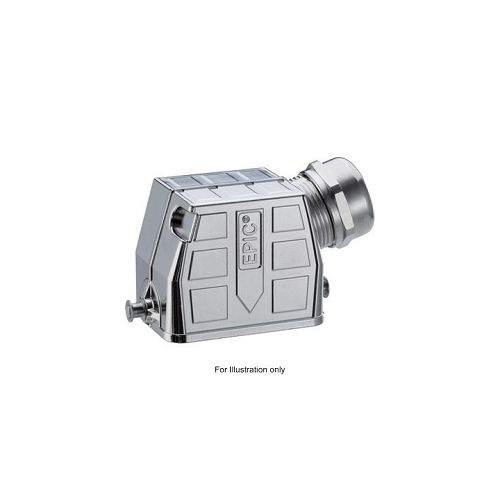

Lapp Epic® Ultra H-B 6 TS LB Housing
More Information
Complete Electronics Part No. 70250205
Manufacturers Part No. ULTRA H-B 6 TS-LB 9-17 BRUSH
Lapp Rectangular Type Housing
Lapp Rectangular Range H-B 6 Housing
Cable Entry: Side Entry
Mounting: Cable
Lever Type Bolts for Single Lever
Description

70250205 / ULTRA H-B 6 TS-LB 9-17 BRUSH

Lapp Epic® Ultra H-B 6 TS LB Housing

  • Housing Hood
  • Bolts For Single Lever
  • Salt Spray Resistance
  • Cable Entry: Side Entry
  • BRUSH Cable Screen Contacting
  • Housing Material: Nickel Plated Zinc Die Casting
  • Lever And Bolt Material: Stainless Steel
  • Cable Gland Body: Nickel Plated Brass
  • Clamping Range: 9 - 17mm
  • Ingress Protection: IP65
  • Temperature Range: -40°C to +100°C
  •                    ***Inserts & Contacts to be purchased separately ***
