70250207 | Lapp Epic® Ultra H-B 6 SGR LB 6-13 Housing

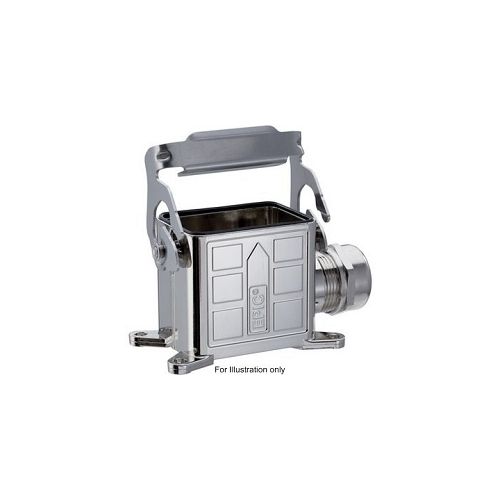

Lapp Epic® Ultra H-B 6 SGR LB Housing
| Complete Electronics Part No. | 70250207 |
|---|---|
| Manufacturers Part No. | ULTRA H-B 6 SGR LB 6-13 |
| Lapp Rectangular Type | Housing |
| Lapp Rectangular Range | H-B 6 Housing |
| Cable Entry: | Side Entry |
| Mounting: | Surface Mounting |
| Lever Type | Single Lever |
Description
70250207 / ULTRA H-B 6 SGR LB 6-13
Lapp Epic® Ultra H-B 6 SGR LB Housing
- Surface Mount Base
- Single Lever
- Salt Spray Resistance
- Cable Entry: Side Entry
- Housing Material: Nickel Plated Zinc Die Casting
- Lever And Bolt Material: Stainless Steel
- Cable Gland Body: Nickel Plated Brass
- Clamping Range: 6 - 13mm
- Ingress Protection: IP65
- Temperature Range: -40°C to +100°C
***Inserts & Contacts to be purchased separately ***
