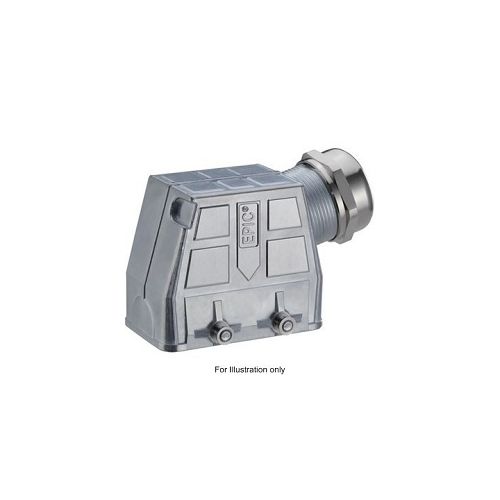

70250210 | Lapp Epic® Ultra H-B 10 TS QB 7-15 Housing
Lapp Epic® Ultra H-B 10 TS QB Housing
| Complete Electronics Part No. | 70250210 |
|---|---|
| Manufacturers Part No. | ULTRA H-B 10 TS QB 7-15 |
| Lapp Rectangular Type | Housing |
| Lapp Rectangular Range | H-B 10 Housing |
| Cable Entry: | Side Entry |
| Mounting: | Cable |
| Lever Type | Bolts for Double Lever |
Description
70250210 / ULTRA H-B 10 TS QB 7-15
Lapp Epic® Ultra H-B 10 TS QB Housing
- Housing Hood
- Double Lever
- Salt Spray Resistance
- Cable Entry: Side Entry
- Housing Material: Nickel Plated Zinc Die Casting
- Lever And Bolt Material: Stainless Steel
- Cable Gland Body: Nickel Plated Brass
- Clamping Range: 7 - 15mm
- Ingress Protection: IP68
- Temperature Range: -40°C to +100°C
***Inserts & Contacts to be purchased separately ***
