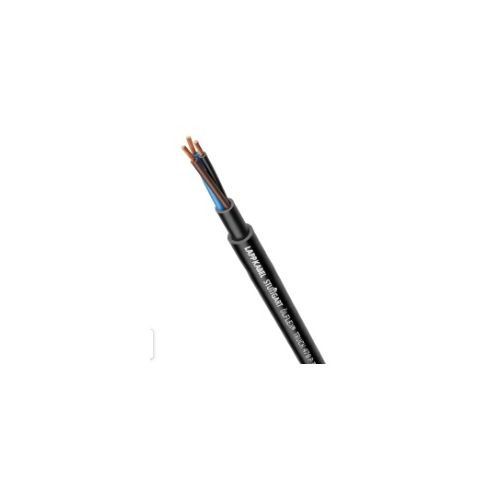

7027022 | OLFLEX TRUCK 470 P 3X1 WH/BN/BU | Vehicle Cable
Power and Control Cable For Commercial Vehicles, Special ADR Approval, Enables use in vehicles transporting hazardous goods, No of Cores: 3 x 1.0mm²
| Complete Electronics Part No. | 7027022 |
|---|---|
| Manufacturers Part No. | 7027022 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 1.0mm² |
| Rated Voltage: | 60 V DC |
| Special Application Series: | OLFLEX TRUCK 470 P |
| Shielding: | Not Shielded |
| Cable Length: | 100 Metres |
Description
7027022 | OLFLEX TRUCK 470 P 3X1 WH/BN/BU
Power and Control Cable For Commercial Vehicles
Special ADR Approval
Enables use in vehicles transporting hazardous goods
No of Cores: 3 x 1.0mm²
Cable Outer Diameter: 6.3mm
Conductor Colour: White/Brown/Blue, newest ISO design
Conductor: Bare Copper (Fine Wire) acc. to DIN ISO 6722
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: acc. to DIN ISO 4141-3
Inner Sheath Material: PVC
Outer Sheath material Polyurethane (PUR)
Outer Sheath colour: Black
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: acc. to DIN ISO 4141-3
Inner Sheath Material: PVC
Outer Sheath material Polyurethane (PUR)
Outer Sheath colour: Black
Flame-retardant acc. to ISO6722-1 5.22
Chemical Resistant - Yes
Halogen-free - No
Oil resistant - Yes
UV resistant - Yes
Chemical Resistant - Yes
Halogen-free - No
Oil resistant - Yes
UV resistant - Yes
Nominal voltage: 60 V DC according to IEC
Temperature Range: -40°C to +85°C
Min Bend Radius: 12 x Outer Diameter
Cable Length: 100M
Lapp part number: 7027022
For commercial verhicles
For hazardous materials transportation
For fixed installations
Special ADR approval - TÜ.EGG.003-94
EAC certified
For hazardous materials transportation
For fixed installations
Special ADR approval - TÜ.EGG.003-94
EAC certified
