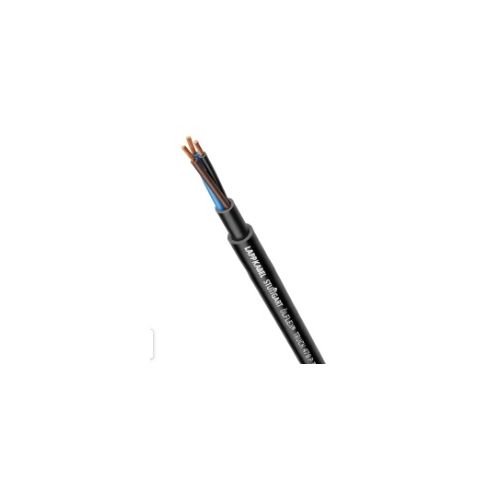

7027030 | OLFLEX TRUCK 470 P 10X1,5+3X2,5+2X1,5 | Vehicle Cable
Power and Control Cable For Vehicles, Special ADR Approval, Enables use in vehicles transporting hazardous goods, Cores: 10x1.5+3x2.5+1x(2x1.5mm²), 60 V DC according to IEC
| Complete Electronics Part No. | 7027030 |
|---|---|
| Manufacturers Part No. | 7027030 |
| Number of Conductors: | 15 |
| Conductor Cross Section: | Various |
| Rated Voltage: | 60 V DC |
| Special Application Series: | OLFLEX TRUCK 470 P |
| Shielding: | Not Shielded |
| Cable Length: | 50 Metres |
Description
7027030 | OLFLEX TRUCK 470 P 15 CORE/COLOURED CORES
Power and Control Cable For Commercial Vehicles
Special ADR Approval - TÜ.EGG.003-94
Enables use in vehicles transporting hazardous goods
No of Cores: 10x1.5+3x2.5+1x(2x1.5mm²)
Cable Outer Diameter: 14.4mm
Conductor Colour: ISO 12098
Conductor: Bare Copper (Fine Wire) acc. to DIN ISO 6722
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: acc. to DIN ISO 4141-3
Inner Sheath Material: PVC
Outer Sheath material Polyurethane (PUR)
Outer Sheath colour: Black
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: acc. to DIN ISO 4141-3
Inner Sheath Material: PVC
Outer Sheath material Polyurethane (PUR)
Outer Sheath colour: Black
Flame-retardant acc. to ISO6722-1 5.22
Chemical Resistant - Yes
Halogen-free - No
Oil resistant - Yes
UV resistant - Yes
Chemical Resistant - Yes
Halogen-free - No
Oil resistant - Yes
UV resistant - Yes
Nominal voltage: 60 V DC according to IEC
Temperature Range: -40°C to +85°C
Min Bend Radius: 12 x Outer Diameter
Cable Length: 50M
Lapp part number: 7027030
For commercial verhicles
For hazardous materials transportation
For fixed installations
Special ADR approval - TÜ.EGG.003-94
EAC certified
For hazardous materials transportation
For fixed installations
Special ADR approval - TÜ.EGG.003-94
EAC certified
