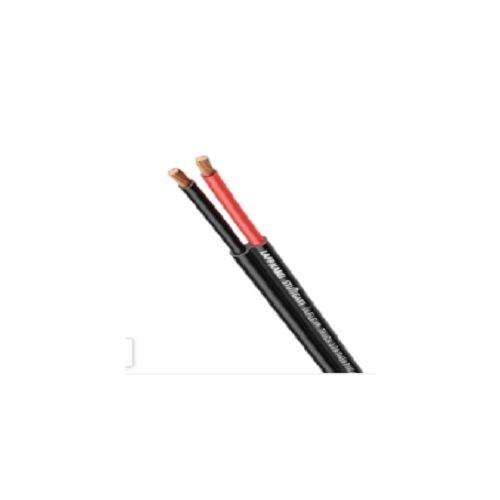

7027057 | OLFLEX TRUCK 170 TWIN 2X16/TÜ.EGG.091-04 | Vehicle Cable
Twin Battery Cable For Vehicles, Cores: 2, Conductor Cross Section: 16.0mm², Cable Dimensions, W x H: 21.0 x 10.0mm, Core Colours: Red/Black
| Complete Electronics Part No. | 7027057 |
|---|---|
| Manufacturers Part No. | 7027057 |
| Number of Conductors: | 2 |
| Conductor Cross Section: | 16.0mm² |
| Rated Voltage: | 60 V DC |
| Special Application Series: | OLFLEX TRUCK 170 TWIN |
| Shielding: | Not Shielded |
| Cable Length: | 500 Metres |
Description
7027057 | OLFLEX TRUCK 170 TWIN 2X16
Twin Battery Cable For Commercial Vehicles
Number of Cores: 2
Conductor Cross Section: 16.0mm²
Cable Dimensions , Width x Height: 21.0 x 10.0mm
Conductor: Bare Copper (Fine Wire)
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: Red / Black
Outer Sheath material PVC
Outer sheath colour: Black
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: Red / Black
Outer Sheath material PVC
Outer sheath colour: Black
ADR approval TÜ.EGG.091-04
Flame-retardant acc. to ISO6722-1 5.22
Halogen-free - No
Oil resistant - No
UV resistant - No
Ozone Resistant - No
Fuel resistant - No
PWIS free - No
Halogen-free - No
Oil resistant - No
UV resistant - No
Ozone Resistant - No
Fuel resistant - No
PWIS free - No
Good chemical resistance
Temperature, fixed installation -40 °C to 85 °C
Min Bend Radius: 15 x Outer Diameter
Area of application, Class A
Nominal voltage: 60 V DC according to IEC
Cable Length: 500M
Lapp part number: 7027057
For commercial verhicles
For hazardous materials transportation
No brushing of cores after stripping
The item designation is always printed on the positive pole
For fixed installations
Special ADR approval - TÜ.EGG.091-04
EAC certified
For hazardous materials transportation
No brushing of cores after stripping
The item designation is always printed on the positive pole
For fixed installations
Special ADR approval - TÜ.EGG.091-04
EAC certified
