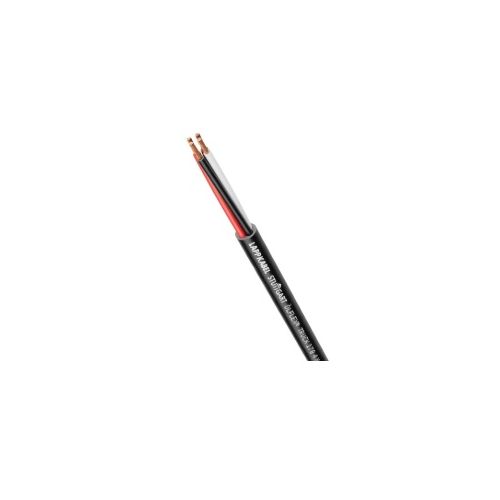

7027071 | OLFLEX TRUCK 170 FLRYY 10X1,5+3X2,5 | Vehicle Cable

Power and Control Cable For Vehicles, Special ADR Approval, For use in vehicles transporting hazardous goods, Number Of Cores: 10 x 1.5 + 3 x 2.5mm²

More Information
Complete Electronics Part No.	7027071
Manufacturers Part No.	7027071
Number of Conductors:	13
Conductor Cross Section:	Various
Rated Voltage:	60 V DC
Special Application Series:	OLFLEX TRUCK 170 FLRYY
Shielding:	Not Shielded
Cable Length:	50 Metres

Description

7027071 | OLFLEX TRUCK 170 FLRYY 10X1,5+3X2,5

Power and Control Cable For Commercial Vehicles

Special ADR Approval

Enables use in vehicles transporting hazardous goods

Number Of Cores: 10 x 1.5 + 3 x 2.5mm²

Cable Outer Diameter: 14.4mm

Conductor Colour: White with Black numbers; 1.5 = no. 1 - 3, 5 - 8, 10 - 12; 2.5 = no. 4, 9, 13

Conductor: Bare Copper (Fine Wire) acc. to ISO 6722-1, table B.1
Conductor insulation: Polyvinylchloride (PVC)
Conductor Insulation Colours: acc. to DIN ISO 4141-3
Outer Sheath material: PVC
Outer Sheath colour: Black

Chemical Resistant - Yes
Halogen-free - No
Oil resistant - Yes
UV resistant - Yes
PWIS free - Yes

Suitable for outdoor use

Nominal voltage: 60 V DC according to IEC

Temperature Range: -40°C to +85°C

Min Bend Radius: 12 x Outer Diameter

Cable Length: 50M

Lapp part number: 7027071

For commercial verhicles
For hazardous materials transportation
For fixed installations
Special ADR approval - TÜ.EGG.003-94
EAC certified
