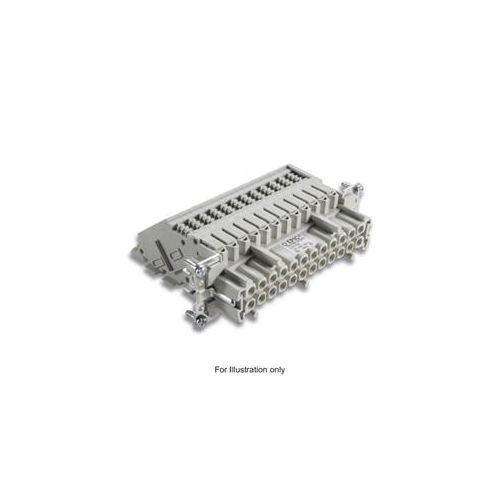

70317100 | TB-H-BE 24 BRE | Lapp Epic® TB-H-BE Insert
Lapp Epic® TB-H-BE Insert TB-H-BE 24 BRE
| Complete Electronics Part No. | 70317100 |
|---|---|
| Manufacturers Part No. | TB-H-BE 24 BRE |
| Lapp Rectangular Type | Insert |
| Lapp Rectangular Range | H-BE Insert |
| Number of poles | 24+PE |
| Male/Female: | Female |
| Termination: | Screw |
| Rated Voltage: | 500V |
| Rated Current: | 16A |
Description
70317100 / TB-H-BE 24 BRE
Lapp Epic® TB-H-BE Insert TB-H-BE 24 BRE
- Insert for Wiring in Control Cabinets
- Number of Contacts: 24+PE
- Rated Voltage: IEC 500V
- Rated Current: IEC 16A
- Termination: Screw
- Contact Type: Female
- Connection Cross Section : 0.5 - 4mm²
- Temperature Range: -40°C to +100°C
- Suitable Housing: Ultra H-B 16, H-B 16
