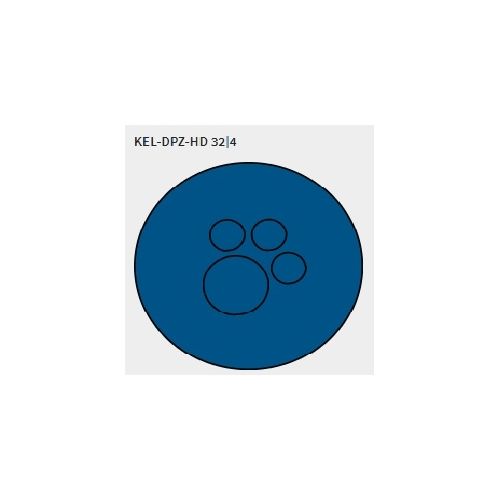

70351 | KEL-DPZ-HD 32|4 | Hygienic Cable Entry Plate
KEL-DPZ-HD 32|4, Locknut fixing, Part Number: 70351, Max 4 Cables, Automatic sealing and strain relief for the cable
| Complete Electronics Part No. | 70351 |
|---|---|
| Manufacturers Part No. | 70351 |
| Product Type: | KEL-DPZ-HD 32 |
| Number of Cables: | max 4 |
| Cut Out Dimensions: | 32.3mm |
| Thread Diameter: | M32 |
| Enclosure Shape: | Circular |
| External Diameter | 44mm |
Description
KEL-DPZ-HD 32/4 gy
For routing cables without connectors
- Number of Cables: max 4
- Cut out Diameter: 32.3mm
- Cut out Size, Metric: M32
- Thread: M32 x 1.5
- Thread: Length: 14mm
- Mounting Height: 8mm
- Silicone Free,
- Halogen Free
- Colour: Blue (Similar to RAL 5005)
- Height 22mm
- Clamping Range: 3 x 3.2 - 6.5mm, 1 x 7.2 - 12.5mm
- External Diameter: 44mm
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Surface Roughness (ISO 4287) - Ra = 0,421 μm
- Part No. 70351
- EAN 4251269322785
- PU 5
