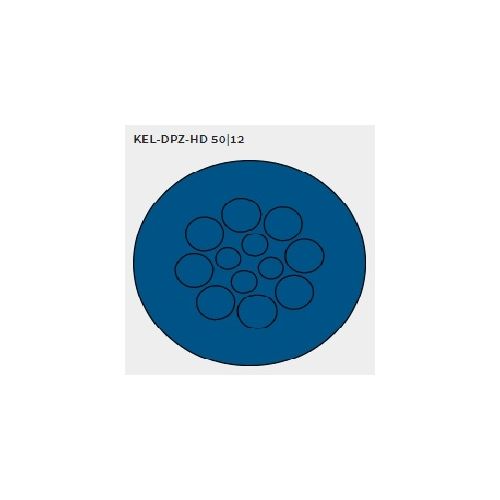

70357 | KEL-DPZ-HD 50/12 | Hygienic Cable Entry Plate
KEL-DPZ-HD 50/12, Locknut fixing, Part Number: 70357, Max 12 Cables, Automatic sealing and strain relief for the cable
| Complete Electronics Part No. | 70357 |
|---|---|
| Manufacturers Part No. | 70357 |
| Product Type: | KEL-DPZ-HD 50 |
| Number of Cables: | max 12 |
| Cut Out Dimensions: | 50.4mm |
| Thread Diameter: | M50 |
| Enclosure Shape: | Circular |
| External Diameter | 62mm |
Description
KEL-DPZ-HD 50/12
For routing cables without connectors
- Number of Cables: max 12
- Cut out Diameter: 50.4mm
- Cut out Size, Metric: M50
- Thread: M50 x 1.5
- Thread: Length: 14mm
- Mounting Height: 8mm
- Silicone Free,
- Halogen Free
- Colour: Blue (Similar to RAL 5005)
- Height 22mm
- Clamping Range: 4 x 3.2 - 6.5mm, 8 x 5 - 10.2mm
- External Diameter: 62mm
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Surface Roughness (ISO 4287) - Ra = 0,421 μm
- Part No. 70357
- EAN 4251269322846
- PU 5
