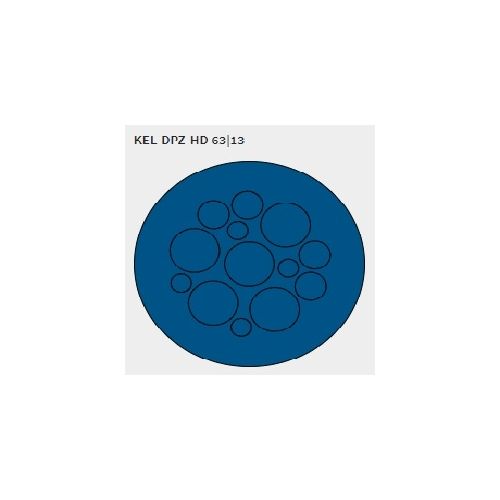

70360 | KEL-DPZ-HD 63/13 | Hygienic Cable Entry Plate
KEL-DPZ-HD 63/13, Locknut fixing, Part Number: 70360, Max 13 Cables, Automatic sealing and strain relief for the cable
| Complete Electronics Part No. | 70360 |
|---|---|
| Manufacturers Part No. | 70360 |
| Product Type: | KEL-DPZ-HD 63 |
| Number of Cables: | max 13 |
| Cut Out Dimensions: | 63.4mm |
| Thread Diameter: | M63 |
| Enclosure Shape: | Circular |
| External Diameter | 75mm |
Description
KEL-DPZ-HD 63/13
For routing cables without connectors
- Number of Cables: max 13
- Cut out Diameter: 63.4mm
- Cut out Size, Metric: M63
- Thread: M63 x 1.5
- Thread: Length: 14mm
- Mounting Height: 8mm
- Silicone Free,
- Halogen Free
- Colour: Blue (Similar to RAL 5005)
- Height 22mm
- Clamping Range: 4 x 3.2 - 6.5mm, 4 x 5 - 10.2mm, 5 x 9 - 16.2mm
- External Diameter: 75mm
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Surface Roughness (ISO 4287) - Ra = 0,421 μm
- Part No. 70360
- EAN 4251269322877
- PU 5
