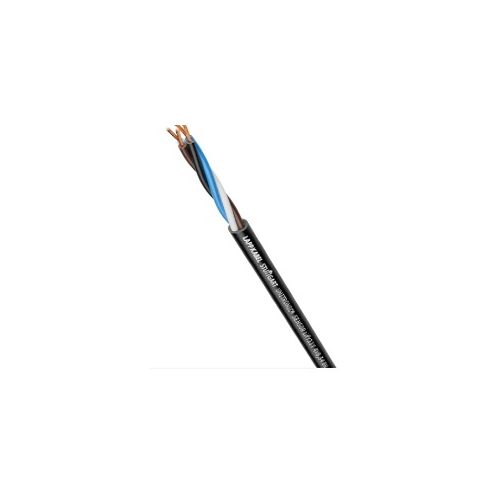

7038861 | UNITRONIC SENSOR LIFY11Y 4X0,34 BK | Lapp Cable
Flexible cable for sensor/actuator cabling, Number of Cores: 4, Core cross section: 0.34mm², Core Insulation: PVC, unshielded
| Complete Electronics Part No. | 7038861 |
|---|---|
| Manufacturers Part No. | 7038861 |
| Number of Conductors: | 4 |
| Conductor Cross Section: | 0.34mm² |
| Shielding: | Not Shielded |
| Cable Jacket: | PUR |
Description
7038861 UNITRONIC® SENSOR Unscreened Cable
Sensor/actuator cable; Cable chain; PUR; LiFY11Y
Product Design
Highly flexible cable design for maximum mechanical stress.
Core Idendification: Colours EN 60947-5-2
Cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions, certain oils, and to abrasion
Suitable for outdoor use, subject to the temperature range
LiF fine-stranded cables - LiFY11Y
Shielded: No
Without protective conductor
Number of Cores: 4
Conductor cross section: 0.25 mm²
Conductor cross section: 0.25 mm²
Nominal outer cable diameter: 4.8 mm
Weight: 33 kg/km
Max. conductor temperature, fixed installation: -40 °C to 80 °C
Max. conductor temperature, occasionally moved: -5 °C to 80 °C
Max. conductor temperature, occasionally moved: -5 °C to 80 °C
Electrical / Insulation Parameters
Maximum operating voltage (not for power transmission): 300 V
Conductor material: LiF fine-stranded cables LiFY11Y
Conductor material: Bare copper, Extra fine copper
Core insulation: Polyvinylchloride (PVC)
Core identification: Colours, EN 60947-5-2
Core identification: Colours, EN 60947-5-2
Outer sheath material: Polyurethane - (PUR)
Outer sheath colour: Black
Product Features
Flame retardant - Yes (IEC 60332-2-2)
Halogen Free - No
Halogen Free - No
Hydrolysis resistant - No
Chemical resistant - No
Chemical resistant - No
Oil Resistant - No
UV Resistant - Yes
PWIS-free - Yes to VDMA 24364-B2-L
For continuous flexing - No
General Information
Durable, resistant product thanks to the outer sheath PUR material that is resistant to abrasions, notches and cuts
Suitable for outdoor use, subject to the temperature range
Highly flexible cable design for medium mechanical stress
The PVC outer sheath is resistant to acids and alkalis and has limited oil resistance.
Increased durability under harsh conditions
The PUR outer sheath withstands medium mechanical loads
EAC-certified, CE Marked
Lapp part number: 7038861
Length: 100M
Length: 100M
