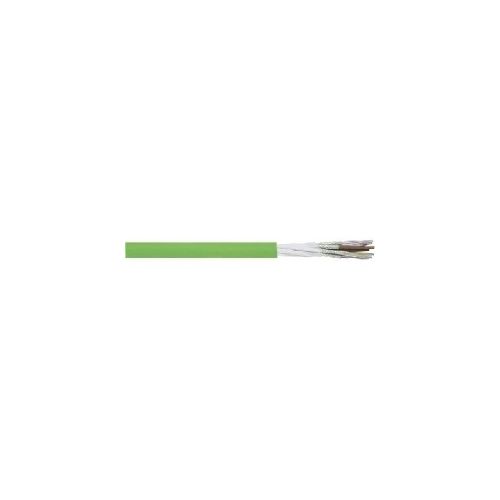

7072517 | SERVO LK LZE-FD4X(2X0,14)+1X(2X1) | Power Chain Cable
Encoder Cable to LENZE Standard, Conductors: 4 x (2 x 0,14) + 1 x (2 x 1,0), Outer Cable Diameter: 11.5mm, Without GN-YE conductor, PUR outer sheath
| Complete Electronics Part No. | 7072517 |
|---|---|
| Manufacturers Part No. | 7072517 |
| Number of Conductors: | 10 |
| Conductor Cross Section: | 0.14mm² |
| Power Chain Series | Cable to LENZE Standard |
Description
SERVO LK LZE-FD4X(2X0,14)+1X(2X1)
Encoder Cable to LENZE Standard
**Product Discontinued***
- Number and Size of Conductors: 4 x (2 x 0,14) + 1 x (2 x 1,0)
- Outer Cable Diameter: 11.5mm
- Without GN-YE protective conductor
- PUR outer sheath
- Core insulation: TPE
- Oil-resistant
- EMC-compliant
- Temperature Range Fixed Install: -40°C to +80°C
- Temperature Range Flexing: -5°C to +70°C
- Cable Length: 500M
