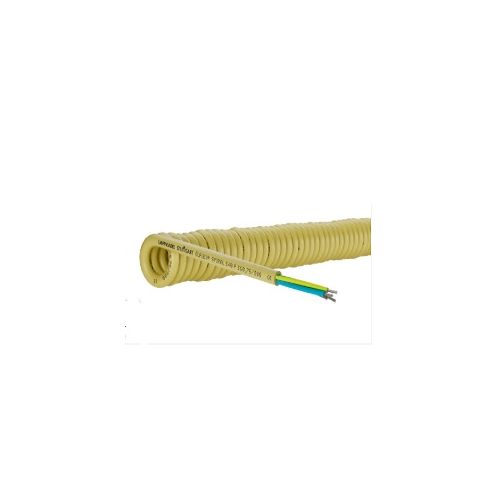

71220136 | OLFLEX SPIRAL 540 P 5G1/600 | Spiral Cable
Olflex PUR spiral cable, Number of cores: 5, Conductor cross section: 1.0mm², Spiral Length extended: 2000mm, Length retracted: 600 mm
| Complete Electronics Part No. | 71220136 |
|---|---|
| Manufacturers Part No. | 71220136 |
| Number of Conductors: | 5 |
| Conductor Cross Section: | 1.0mm² |
| Rated Voltage: | 300 / 500 V |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Spiral Length Extended: | 2000mm |
| Spiral Length Unextended: | 600mm |
Description
71220136 ÖLFLEX® SPIRAL 540 P Cable
Spiral cable; 5G1.0; For use in dry, damp or wet conditions
Product Design
Highly flexible cable design allows the cable to be extended 3.5 times
Core marking according to VDE 0293-308 colour code for unambiguous identification
Cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions, certain oils, and to abrasion
The signal colour of the outer sheath increases safety and visual perception
With protective conductor
Number of Cores: 5
Conductor cross section: 1.0 mm²
Conductor cross section: 1.0 mm²
Nominal outer cable diameter: 9 mm
Outer Diameter of spiral: 32 mm
Weight: 0.537 kg
Assembly Length: Retracted: 600 mm, Extended: 2000 mm
Length of the straight ends: 200 mm, 600 mm
Temperature, occasionally moved: -30°C to 50°C
Temperature, occasionally moved: -30°C to 50°C
Electrical / Insulation Parameters
Test Voltage: 3.5kV
Nominal voltage: U0/U 300 / 500 V AC rms according to IEC
Conductor material: Tin Plated Copper Stranding
Conductor design: IEC 60228 class 5 fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core identification: Colours to VDE 0293-308 (Up to 5 cores)
Conductor design: IEC 60228 class 5 fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core identification: Colours to VDE 0293-308 (Up to 5 cores)
More than 5 cores: black cores with white numbers
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Yellow
Product Features
Flame retardant - Yes acc. to IEC 60332-1-2
Halogen Free - Yes to VDE 0472-815
Halogen Free - Yes to VDE 0472-815
Hydrolysis resistant - Yes
Chemical resistant - Yes
Chemical resistant - Yes
Oil Resistant - Yes to EN 50363-10-2
UV Resistant - Yes to EN ISO 4892-2, method A (colour change permitted)
Weather resistant - Yes
PWIS-free - Yes
PWIS-free - Yes
MUD resistance according to IEC 61892-4
General Information
Durable, resistant product thanks to the outer sheath PUR material that is resistant to abrasions, notches and cuts
Suitable for use in damp interiors or outdoors
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The PUR outer sheath withstands high mechanical loads
Increased durability under harsh conditions
EAC Certified, CE Marked
Lapp part number: 71220136
Assembly Length: 600 mm to 2000 mm
Assembly Length: 600 mm to 2000 mm
