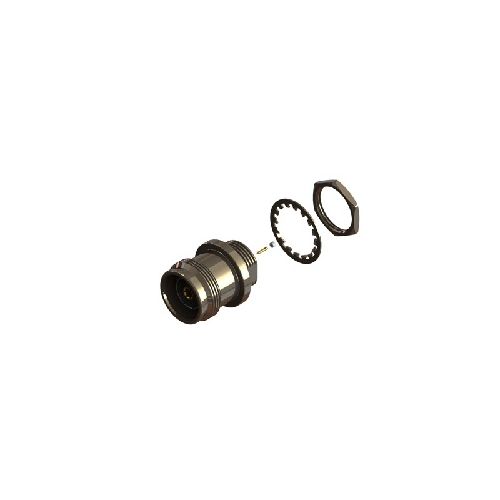

72-346-Q3-HA | 72346Q3HA | 4.3/10 Front Mount Solder Jack
4.3/10 Front Mount Bulkhead Solder Jack, Silver plated contacts with a white bronze plated body, tin plated for ease of soldering semi rigid cable
| Complete Electronics Part No. | 72346Q3HA |
|---|---|
| Manufacturers Part No. | 72-346-Q3-HA |
| Male/Female: | Jack |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 750 Veff
- Insulation: 1000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Centre Contact Termination: Solder Bullet Contact
- Outer Contact Termination: Solder
- Cable Retention: 220N mim
- Weight: 39.39g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Beryllium Copper
- Insulator: PTFE
- Body: Brass
- Centre Contact Plating: Silver
- Outer Contact Plating: Silver
- Body Plating: White Bronze
