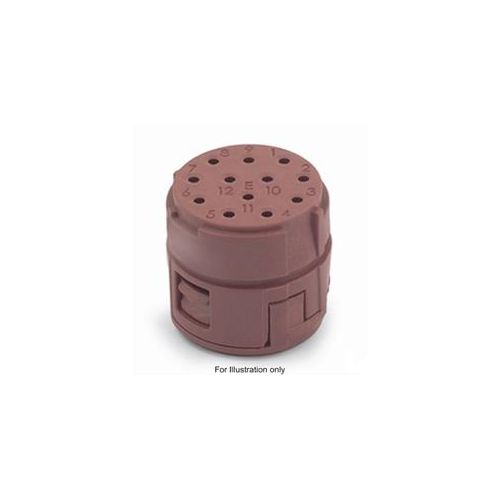

73002721 | Lapp M23 Insert | Epic® Signal M23 Insert 12 Pole
Epic® Signal M23 Insert - 12 Pole, Rated Voltage: 100V, Rated Current: 7A, Contact: Gold Plated Brass
| Complete Electronics Part No. | 73002721 |
|---|---|
| Manufacturers Part No. | 73002721 |
| Type: | Insert |
| Lapp Circular Range: | Signal M23 |
| Number of poles | 12 |
| Coded Option (Circular) | E Part (Rotation to Right) |
| Crimp Type - Size: | Male Contacts - Solder |
Description
Part Number 73002721
Epic® Signal M23 Insert - 12 Pole
- Rated Voltage: 100V
- Rated Current: 7A
- Contact Resistance: < 4 mOhm
- Contact: Gold Plated Brass
- Including 12 Male Solder Contacts
- Temperature Range: -25°C to +125°C
- E part (rotation to the right - clockwise)
- Inserts are suitable for male or female contacts
- For a complete connection you will need one P part and one E part
