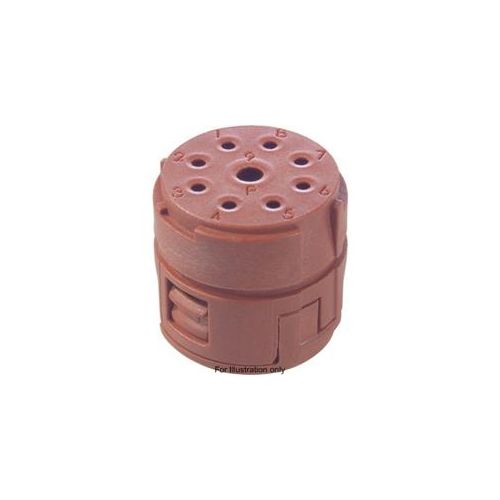

73002737 | Lapp M23 Insert | Epic® Signal M23 Insert 8 +1 Pole
Epic® Signal M23 Insert - 8 + 1 Pole, Rated Voltage: 150V, Rated Current: 20A for 2mm contacts and 7A for 1mm contacts, Contact: Gold Plated Brass
| Complete Electronics Part No. | 73002737 |
|---|---|
| Manufacturers Part No. | 73002737 |
| Type: | Insert |
| Lapp Circular Range: | Signal M23 |
| Number of poles | 8+1 |
| Coded Option (Circular) | P Part (Rotation to left) |
| Crimp Type - Size: | Unpopulated |
Description
Part Number 73002737
Epic® Signal M23 Insert - 8 + 1 Pole
- Rated Voltage: 150V
- Rated Current: 20A for 2mm contacts and 7A for 1mm contacts
- Contact Resistance: < 4 mOhm
- Contact: Gold Plated Brass
- Not Including Contacts
- Temperature Range: -25°C to +125°C
- P part (rotation to the left - anticlockwise)
- Inserts are suitable for male or female contacts
- For a complete connection you will need one P part and one E part
***Contacts to be purchased separately. See M23 Signal Accessories Section***
