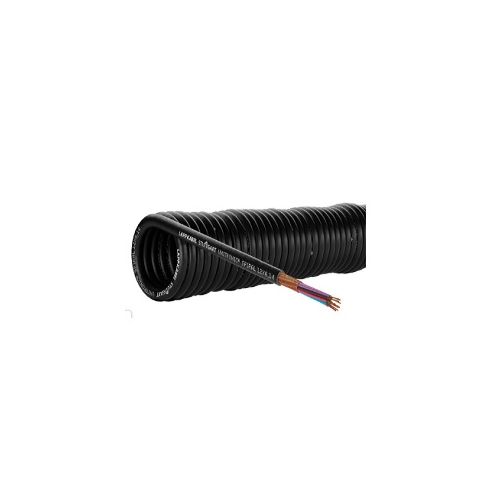

73220233 | UNITRONIC SPIRAL 12X0,14/400 | Spiral Cable
Unitronic Spiral cable with overall shielding, Number of cores: 12, Conductor diameter: 0.14mm², Spiral Length extended: 1600mm
| Complete Electronics Part No. | 73220233 |
|---|---|
| Manufacturers Part No. | 73220233 |
| Number of Conductors: | 12 |
| Conductor Cross Section: | 0.14mm² |
| Shielding: | Shielded / Screened |
| Protective Conductor: | No |
| Spiral Length Extended: | 1600mm |
| Spiral Length Unextended: | 400mm |
Description
73220233 | UNITRONIC SPIRAL® Shielded Cable
Spiral cable; 12X0.14; Retracted 400 mm - Extended 1600 mm
Product Design
Highly flexible cable design allows the cable to be extended 4 times
Core marking according to DIN 47100 colour code for unambiguous identification
Robust shielding with braided tin-plated copper wires
Flexible data cable for weak current applications
Cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions and certain oils, and to abrasion
Without protective conductor
Number of Conductors: 12
Conductor cross section: 0.14 mm²
Conductor cross section: 0.14 mm²
Nominal outer cable diameter: 7.2 mm
Outer Diameter of spiral: 28 mm
Weight: 0.298 kg
Assembly Length: Retracted: 400 mm, Extended: 1600 mm
Length of the straight ends: 200 mm, 600 mm
Temperature, occasionally moved: -5°C to 50°C
Temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Test Voltage: 1.2kV
Peak voltage during operation 250 V (not for power applications)
Conductor material: Bare Copper Stranding
Conductor design: IEC 60228 class 6: Extra fine wire
Core insulation:Polyvinylchloride (PVC)
Core identification: Colours to DIN47100
Conductor design: IEC 60228 class 6: Extra fine wire
Core insulation:Polyvinylchloride (PVC)
Core identification: Colours to DIN47100
Type of overall screen: Copper wrapping
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Black
Outer sheath colour: Black
Product Features
Flame retardant - No
Halogen Free - No
Low-adhesion sheath surface - No
Halogen Free - No
Low-adhesion sheath surface - No
Oil Resistant - Yes
UV Resistant - Yes
PWIS-free - Yes (VDMA 24364-B2-L)
PWIS-free - Yes (VDMA 24364-B2-L)
General Information
Can be used in dry and damp conditions, and especially in harsh and oily environments
Flexible use at temperatures down to -5°C
Suitable for outdoor use, subject to the temperature range
For fixed installation and occasional movement
For fixed installation and occasional movement
Outer sheath material which is resistant to abrasion, notches and cuts.
The PUR outer sheath withstands high mechanical loads
Ideal protection against electromagnetic interference
CE marked, EAC Certified
Lapp part number: 73220233
Assembly Length: 400 mm to 1600 mm
Assembly Length: 400 mm to 1600 mm
