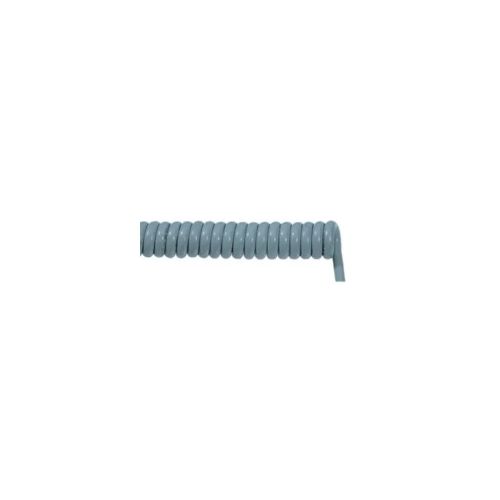

73220349 | UNITRONIC SPIRAL LIF2Y11Y 3X0,25/500 | Spiral Cable
Unitronic Spiral cable Unshielded, Number of cores: 3, Conductor cross sction: 0.25mm², Spiral Length extended: 2000mm
| Complete Electronics Part No. | 73220349 |
|---|---|
| Manufacturers Part No. | 73220349 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 0.25mm² |
| Shielding: | Not Shielded |
| Protective Conductor: | No |
| Spiral Length Extended: | 2000mm |
| Spiral Length Unextended: | 500mm |
Description
73220349 | UNITRONIC SPIRAL® LiF2Y11Y Unshielded Cable
Spiral cable; 3X0.25; Retracted 500 mm - Extended 2000 mm
Product Design
Highly flexible cable design allows the cable to be extended 4 times
Core marking according to DIN 47100 colour code for unambiguous identification
Flexible data cable for weak current applications
Cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions, certain oils, and to abrasion
Without protective conductor
Number of Conductors: 3
Conductor cross section: 0.25 mm²
Conductor cross section: 0.25 mm²
Nominal outer cable diameter: 4.5 mm
Outer Diameter of spiral: 19 mm
Weight: 0.16 kg
Assembly Length: Retracted: XX mm, Extended: XX mm
Length of the straight ends: 200 mm, 600 mm
Temperature, occasionally moved: -5°C to 50°C
Temperature, occasionally moved: -5°C to 50°C
Electrical / Insulation Parameters
Test Voltage: 1.5kV
Peak voltage during operation 0.14 mm² 350 V (not for power applications)
Peak voltage during operation 0.25 mm²: 500 V (not for power applications)
Conductor material: Bare Copper Stranding
Conductor design: IEC 60228 class 6: Extra fine wire
Core insulation: Polyolefin
Core identification: Colours to DIN47100
Conductor design: IEC 60228 class 6: Extra fine wire
Core insulation: Polyolefin
Core identification: Colours to DIN47100
Outer sheath material: Polyurethane (PUR)
Outer sheath colour: Grey
Outer sheath colour: Grey
Product Features
Flame retardant - No
Halogen Free - Yes to VDE 0472-815
Chemical resistant - Yes
Halogen Free - Yes to VDE 0472-815
Chemical resistant - Yes
Oil Resistant - Yes to EN 50363-10-2
UV Resistant - Yes to EN ISO 4892-2, method A (colour change permitted)
PWIS-free - No
PWIS-free - No
General Information
Durable, resistant product thanks to the outer sheath PUR material that is resistant to abrasions, notches and cuts
Flexible use at temperatures down to -5°C
Can be used in dry and damp spaces
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The PUR outer sheath withstands high mechanical loads
With conductor cross-sections from 0.14 mm² for low-frequency data transmission
EAC Certified
Lapp part number: 73220349
Assembly Length: 500 mm to 2000 mm
Assembly Length: 500 mm to 2000 mm
