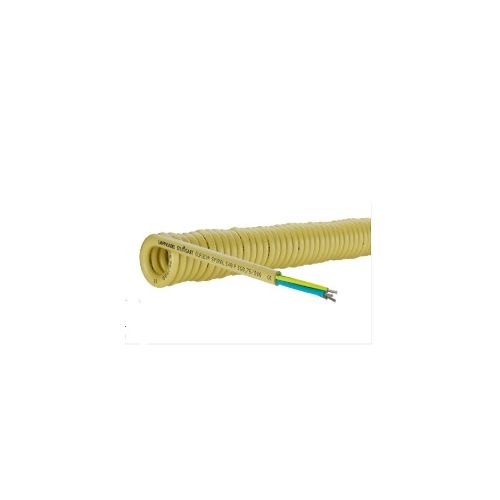

73220852 | OLFLEX SPIRAL 540 P 3G0,75/300 | Spiral Cable
Olflex Spiral cable with angular Isolated Ground Plug, Number of cores: 3, Conductor cross section: 0.75mm², Spiral Length extended: 1000mm
| Complete Electronics Part No. | 73220852 |
|---|---|
| Manufacturers Part No. | 73220852 |
| Number of Conductors: | 3 |
| Conductor Cross Section: | 0.75mm² |
| Shielding: | Not Shielded |
| Protective Conductor: | Yes |
| Spiral Length Extended: | 1000mm |
| Spiral Length Unextended: | 300mm |
Description
73220852 ÖLFLEX® SPIRAL 540 P Cable
Spiral cable; 3G0.75; with angular, isolated ground plug
Product Design
Highly flexible cable design allows the cable to be extended 3.5 times
Core marking according to VDE 0293-308 colour code for unambiguous identification
Cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions, certain oils, and to abrasion
The signal colour of the outer sheath increases safety and visual perception
With protective conductor
Number of Cores: 3
Conductor cross section: 0.75 mm²
Conductor cross section: 0.75 mm²
Nominal outer cable diameter: 7.0 mm
Outer Diameter of spiral: 24 mm
Weight: 0.228 kg
Assembly Length: Retracted: 300 mm, Extended:1000 mm
Length of the straight ends: 200 mm, 600 mm
Temperature, occasionally moved: -30°C to 50°C
Temperature, occasionally moved: -30°C to 50°C
Electrical / Insulation Parameters
Test Voltage: 2kV
Nominal voltage: U0: 250 V AC rms according to IEC
Conductor design: IEC 60228 class 5 fine wire
Core insulation: Thermoplastic elastomers (TPE)
Core identification: Colours to VDE 0293-308
Core insulation: Thermoplastic elastomers (TPE)
Core identification: Colours to VDE 0293-308
Outer sheath material: Polyurethane (PUR)
Protective contact at the ends: At the connector end, Cable contains protective conductor
Termination of second cable end: 30 mm stripped
Outer sheath colour: Yellow
Outer sheath colour: Yellow
Product Features
Flame retardant - No
Halogen Free - No
Chemical resistant - Yes
Halogen Free - No
Chemical resistant - Yes
Oil Resistant - Yes to EN 50363-10-2
UV Resistant - Yes to EN ISO 4892-2, method A (colour change permitted)
PWIS-free - No
PWIS-free - No
General Information
Durable, resistant product thanks to the outer sheath PUR material that is resistant to abrasions, notches and cuts
Plug design standard: IEC 60309/ DIN VDE 0620-2-1 (DIN 49441) (VII of CEE 7) (CEE 7/7)
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath withstands high mechanical loads
The PUR outer sheath is resistant to mineral oil-based lubricants and highly resistant to chemicals
The PUR outer sheath withstands high mechanical loads
Designed for use in dry conditions and may only be installed considering the temperature range.
CE Marked
Lapp part number: 73220852
Assembly Length: 300 mm to 1000 mm
Assembly Length: 300 mm to 1000 mm
