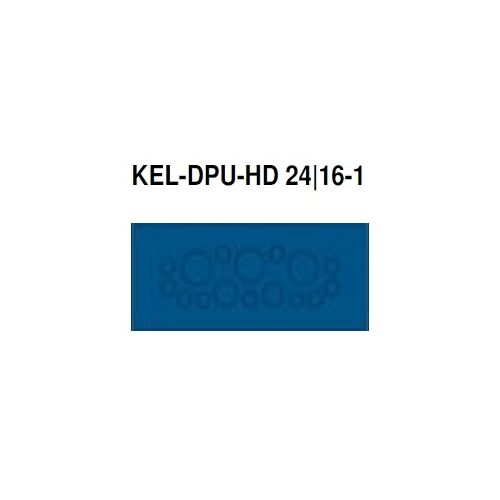

73932 | KEL-DPU-HD 24|16-1 | Rectangular Cable Entry Plate
KEL-DPU-HD 24|16-1, Part Number: 73932, Max 16 Cables, silicone free, resistant to oil and mould, halogen free
| Complete Electronics Part No. | 73932 |
|---|---|
| Manufacturers Part No. | 73932 |
| Product Type: | KEL-DPU-HD 24 |
| Number of Cables: | max 16 |
| Enclosure Shape: | Rectangular |
Description
KEL-DPU-HD 24/16-1
For routing cables without connectors
- Number of Cables: max 16
- Clamping Range (1): 2 x 3.2 - 6.3 mm
- Clamping Range (2): 9 x 4 - 7.5 mm
- Clamping Range (3): 1 x 5.5 - 10.5 mm
- Clamping Range (4)::1 x 8 - 12.5 mm
- Clamping Range (5): 3 x 12 - 16.2 mm
- Cut out Size, 112 X 36
- Length: 147mm
- Width: 58 mm
- Height: 14 mm
- Thread: M4
- Operating temperature -40 C° to 80 C°
- Min Wall Thickness: 1.5 mm
- Max Wall Thickness: 2 mm
- Number of Screw Holes: 4
- Diameter of Screw Holes: 4 mm
- Colour: Blue (Similar to RAL 5005)
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Surface Roughness (ISO 4287) - Ra = 0,421 μm
- Part No. 73932
- EAN 4251269324291
- PU 10
