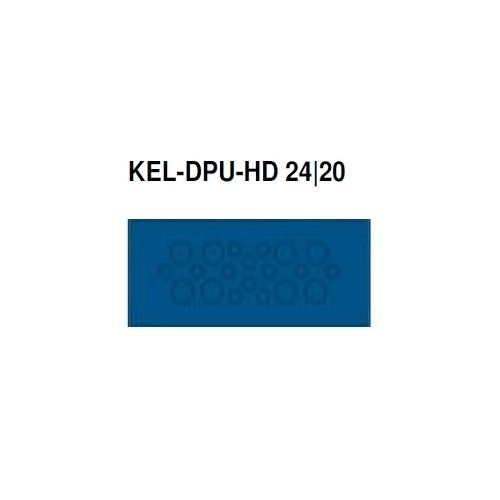

73938 | KEL-DPU-HD 24|20 | Rectangular Cable Entry Plate
KEL-DPU-HD 24|20, Part Number: 73938, Max 20 Cables, silicone free, resistant to oil and mould, halogen free
| Complete Electronics Part No. | 73938 |
|---|---|
| Manufacturers Part No. | 73938 |
| Product Type: | KEL-DPU-HD 24 |
| Number of Cables: | max 20 |
| Enclosure Shape: | Rectangular |
Description
KEL-DPU-HD 24/20
For routing cables without connectors
- Number of Cables: max 20
- Clamping Range (1): 12 x 3.2 - 6.3 mm
- Clamping Range (2): 8 x 5 - 10.5 mm
- Cut out Size, 112 X 36
- Length: 147mm
- Width: 58 mm
- Height: 14 mm
- Thread: M4
- Operating temperature -40 C° to 80 C°
- Min Wall Thickness: 1.5 mm
- Max Wall Thickness: 2 mm
- Number of Screw Holes: 4
- Diameter of Screw Holes: 4 mm
- Colour: Blue (Similar to RAL 5005)
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Surface Roughness (ISO 4287) - Ra = 0,421 μm
- Part No. 73938
- EAN 4251269324314
- PU 10
