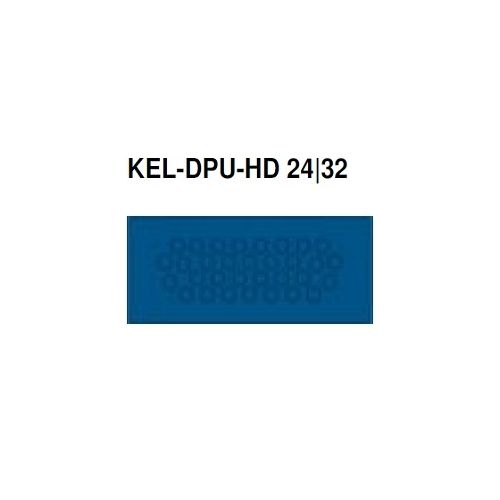

73942 | KEL-DPU-HD 24|32 | Rectangular Cable Entry Plate
KEL-DPU-HD 24|13, Max 32 Cables, Automatic sealing and strain relief for the cable
| Complete Electronics Part No. | 73942 |
|---|---|
| Manufacturers Part No. | 73942 |
| Product Type: | KEL-DPU-HD 24 |
| Number of Cables: | max 32 |
| Enclosure Shape: | Rectangular |
Description
KEL-DPU-HD 24/32
For routing cables without connectors
- Number of Cables: max 32
- Clamping Range: 32 x 3.2 - 6.3mm
- Cut out Size, 112 X 36
- Length: 147mm
- Width: 58 mm
- Height: 14 mm
- Thread: M4
- Min Wall Thickness: 1.5mm
- Max Wall Thickness: 2 mm
- Number of Screw Holes: 4
- Diameter of Screw Holes: 4 mm
- Colour: Blue (Similar to RAL 5005)
- Make a small hole in the thin membrane and push the cables through
- Automatic sealing and strain relief for the cable
- Surface Roughness (ISO 4287) - Ra = 0,421 μm
- Part No. 73942
- EAN 4251269324338
- PU 10
