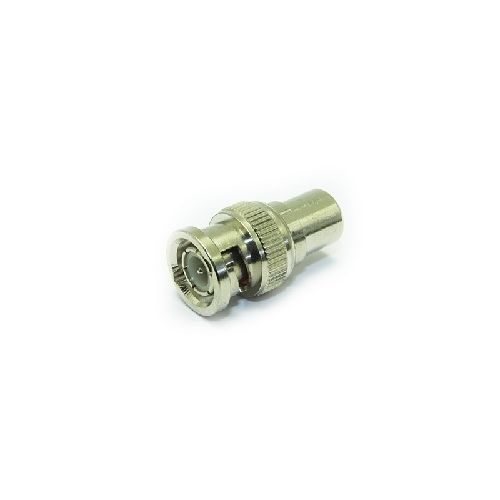

74-1016-514 | 741016514 | BNC Plug to Euro Plug Adaptor
Inter-Series adaptor for connection between different connector families. BNC Plug to Euro Plug Adaptor, Connector used for European TV (PAL) connections.
| Complete Electronics Part No. | 741016514 |
|---|---|
| Manufacturers Part No. | 74-1016-514 |
| Male/Female: | Male and Male |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance: 50Ohm
- Frequency Range: 0-1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 13g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
