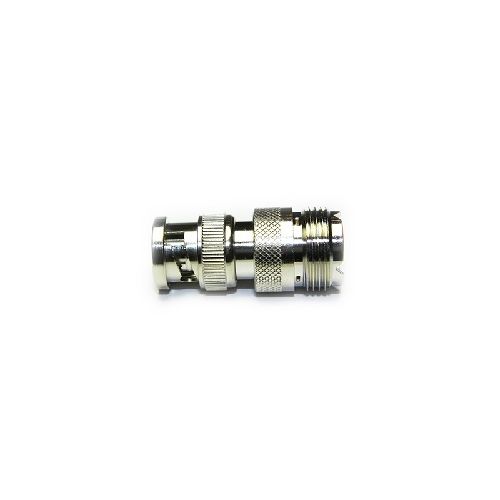

74-1020-511 | 741020511 | BNC Plug to UHF Jack Adaptor

Inter-Series adaptor for connection between different connector families. BNC Plug to UHF Jack Straight Adaptor
More Information
Complete Electronics Part No. 741020511
Manufacturers Part No. 74-1020-511
Description

Electrical Specification

  • Impedance: 50 Ohm
  • Frequency Range: Up to 1GHz
  • Dielectric Withstand Voltage 1500 Veff
  • Insulation Resistance 5000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Weight: 22.4g
  • Operating Temperature: -35 to +70°C
  • IP Rating (Mated): IP64

Materials

  • Centre Contact: Brass
  • Outer Contact:   Brass
  • Insulator: Delrin
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
