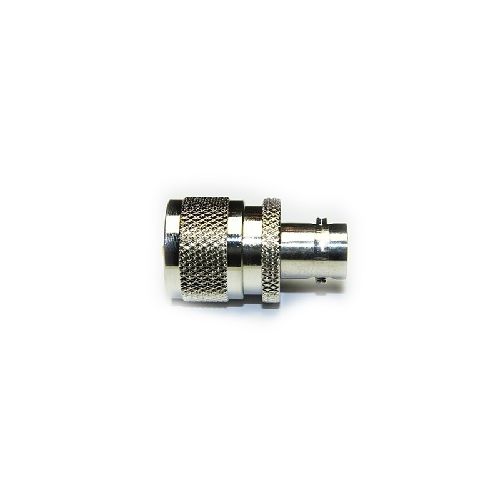

74-1020-534 | 741020534 | BNC Jack to UHF Plug Adaptor
Inter-Series adaptor for connection between different connector families. BNC Jack to UHF Plug Straight Adaptor
| Complete Electronics Part No. | 741020534 |
|---|---|
| Manufacturers Part No. | 74-1020-534 |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 21.6g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
