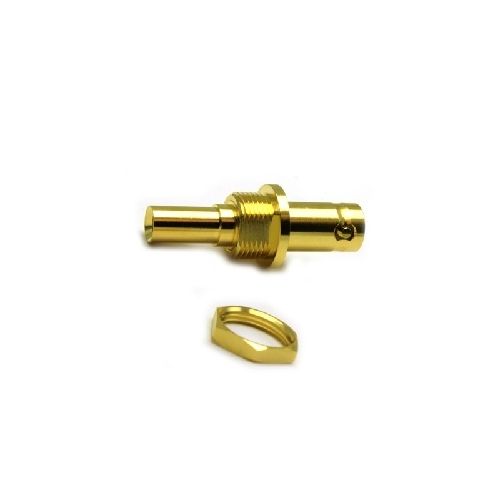

74-1029-535 | 741029535 | BNC Jack to DIN 41626 Bulkhead Plug
75 Ohm BNC Jack to DIN 41626 Plug Bulkhead Adaptor.
| Complete Electronics Part No. | 741029535 |
|---|---|
| Manufacturers Part No. | 74-1029-535 |
| Type | DIN 41626 |
Description
Electrical Specification
- Impedance 75 Ohm
- Frequency Range Up to 0.2GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight 16.37g
- Operating Temperature -55 to +155 Deg C
- IP Rating ( Mated ) IP64
Materials
- Centre Contact Beryllium Copper
- Outer Contact Beryllium Copper
- Insulator PTFE
- Centre Contact Plating Gold
- Outer Contact Plating Gold
- Pack Size 1
Important Note: Do not mix 50ohm and 75ohm variants of this series or damage will occur to the centre contacts
