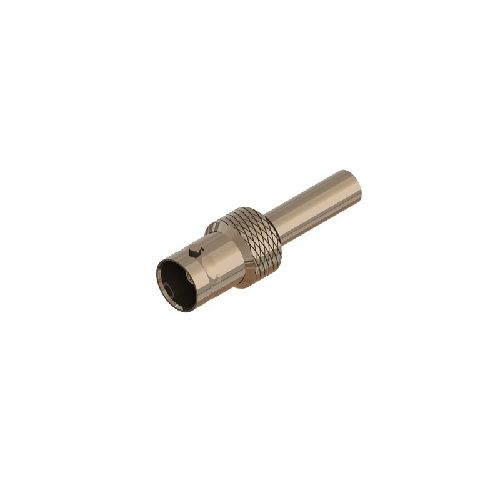

74-1064-500 | 741064500 | Jack Adaptor

BNC Jack to Micro Musa Jack Adaptor, Impedance 75 Ohm, Frequency Range Up to 18 GHz
More Information
Complete Electronics Part No. 741064500
Manufacturers Part No. 74-1064-500
Description

Electrical Specification

  • Impedance: 75 Ohm
  • Frequency Range: Up to 18GHz
  • Dielectric Withstand Voltage 1000 Veff
  • Insulation Resistance 10000 M-Ohm

Mechanical Specification

  • RoHS3 Compliant
  • Mating Cycles: 5000
  • Weight: 9.85g
  • Mating Force: 10N Max
  • Uncoupling Force: 25N Max
  • Operating Temperature: -55 to +155°C
  • IP Rating (Mated): IP30

Materials

  • Centre Contact: Beryllium Copper
  • Outer Contact:   Brass
  • Insulator: PTFE
  • Centre Plating Contact: Gold
  • Outer Contact Plating: Nickel
  • Pack Size 1
