74-1064-544-B126-3 | 741064544B1263 | Jack Adaptor

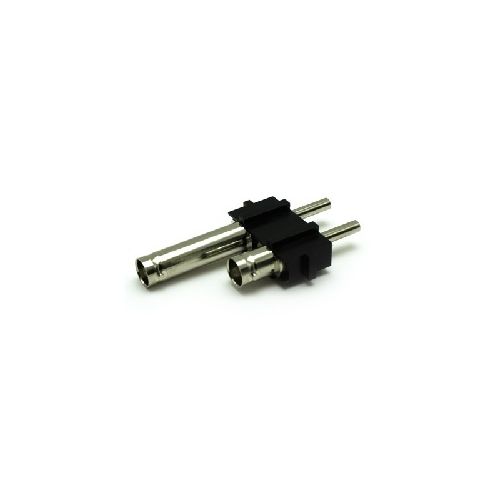

microMUSA Plug to BNC Jack 12G Adaptor 2 Way Block, Impedance 75 Ohm, Frequency Range Up to 18 GHz
| Complete Electronics Part No. | 741064544B1263 |
|---|---|
| Manufacturers Part No. | 74-1064-544-B126-3 |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: Up to 18GHz
- Dielectric Withstand Voltage 1000 Veff
- Insulation Resistance 10000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 5000
- Weight: 9.85g
- Mating Force: 10N Max
- Uncoupling Force: 25N Max
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP30
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
