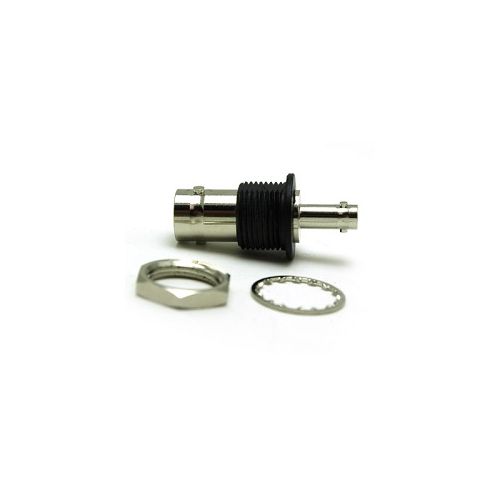

74-1067-503 | 741067503 | BNC Bulkhead Jack to Micro BNC Jack
Inter-Series adaptor for connection between different connector families. BNC Insulated Bulkhead Jack to Micro BNC Jack 12G Adaptor
| Complete Electronics Part No. | 741067503 |
|---|---|
| Manufacturers Part No. | 74-1067-503 |
| Male/Female: | Female and Female |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency: Up to 12GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 12.35g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size: 1
