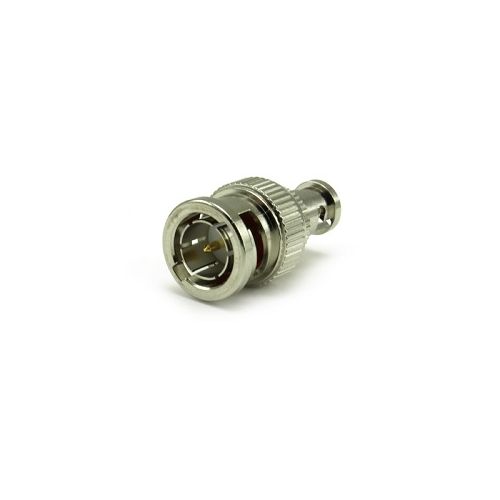

74-1067-514 | 741067514 | Micro BNC Plug to BNC Plug Adaptor
Inter-Series adaptor for connection between different connector families. Micro BNC Plug to BNC Plug 18Ghz Straight Adaptor
| Complete Electronics Part No. | 741067514 |
|---|---|
| Manufacturers Part No. | 74-1067-514 |
| Male/Female: | Male and Male |
| Type | Straight |
| Impedance | 75 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 75 Ohm
- Frequency: Up to 18GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
- Return Loss: -21.74dB@18GHz
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 11.44g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 64
Materials
- Centre Contact: Brass
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size: 1
