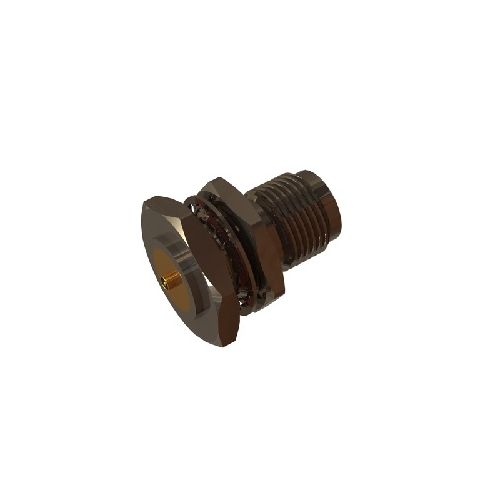

74-1449-501-B3 | 741449501B3 | TNC Jack to UFL Jack Adaptor
Inter-Series adaptor for connection between different connector families. TNC Bulkhead Reverse Polarity Jack to UFL Jack Adaptor.
| Complete Electronics Part No. | 741449501B3 |
|---|---|
| Manufacturers Part No. | 74-1449-501-B3 |
| Male/Female: | Female and Female |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Reverse Polarity
- Impedance: 50 Ohm
- Frequency Range: Up to 6GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 19.94g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating TNC: Nickel
- Outer Contact Plating UFL: Gold
- Pack Size 1
