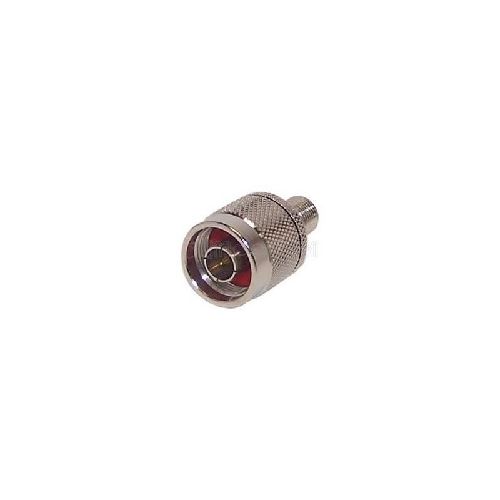

74-1525-534 | 741525534 | F Type Jack to N Type Plug
Inter-Series adaptor for connection between different connector series. F Type Jack to N Type Plug Straight Adaptor
| Complete Electronics Part No. | 741525534 |
|---|---|
| Manufacturers Part No. | 74-1525-534 |
| Male/Female: | Male and Female |
| Type | F Type Adaptor |
| Impedance | 75 Ohm |
| Working Frequency | Up To 1 GHz |
Description
F Type Jack to N Type Plug Straight Adaptor
Electrical Specification
- Impedance: 75 Ohm
- Frequency Range: 0-1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 24.7g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating Nickel
- Pack Size 1
