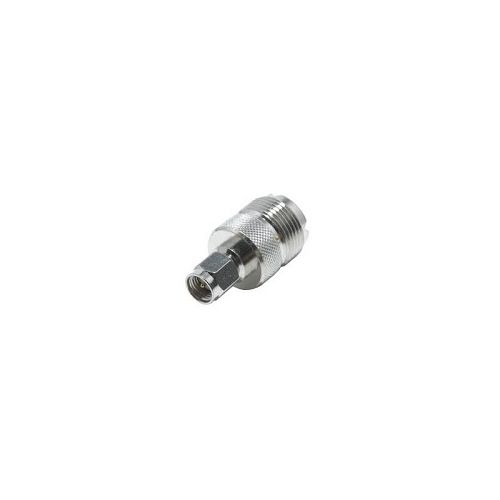

74-2030-534 | 742030534 | UHF Jack to SMA Plug Adaptor
Inter-Series adaptor for connection between different connector families. UHF Jack to SMA Plug Straight Adaptor
| Complete Electronics Part No. | 742030534 |
|---|---|
| Manufacturers Part No. | 74-2030-534 |
| Male/Female: | Male and Female |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 1 GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency Range: Up to 1GHz
- Dielectric Withstand Voltage 1500 Veff
- Insulation Resistance 5000 M-Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 12.7g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Plating Contact: Gold
- Outer Contact Plating: Nickel
- Pack Size 1
