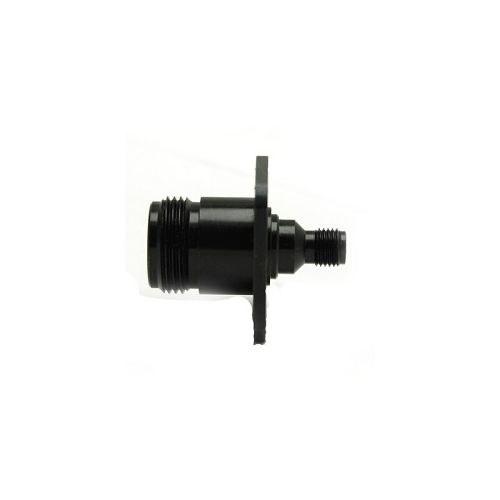

74-2530-506-J3 | 742530506J3 | N Type Jack to SMA Jack
N Type Jack to SMA Jack 4 hole 1" Square Flange Adaptor. This Adaptor is made from Brass and Plated With A Black Non Reflective Plating
| Complete Electronics Part No. | 742530506J3 |
|---|---|
| Manufacturers Part No. | 74-2530-506-J3 |
| Male/Female: | Female and Female |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 12GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 100
- Weight: 31.07g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 60
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Black Nickel
- Pack Size: 1
