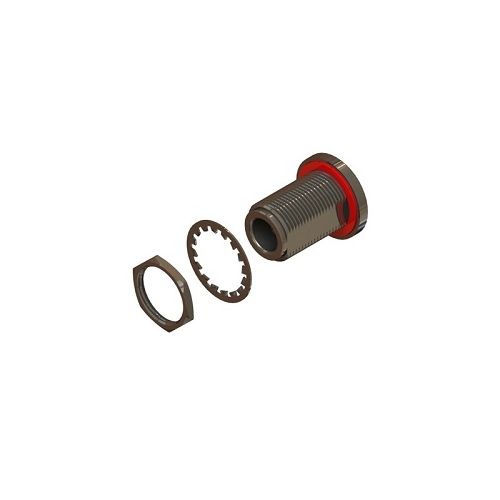

74-2545-501-H3 | 742545501H3 | N Type Jack to MCX Jack Adaptor
Inter-Series adaptor for connection between different connector families. N Type Bulkhead Jack to MCX Jack Straight Adaptor. Stainless Steel, IP68 Un-Mated
| Complete Electronics Part No. | 742545501H3 |
|---|---|
| Manufacturers Part No. | 74-2545-501-H3 |
| Male/Female: | Female and Female |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Mating Cycles: 500
- Weight: 35g
- Operating Temperature: -55 to +155°C
- IP Rating (Un-Mated): IP 68
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Stainless Steel
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Passivated
- Pack Size: 1
