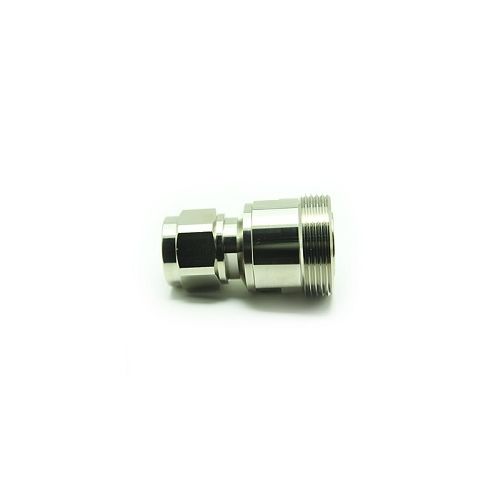

74-2555-511-P3 | 742555511P3 | N Type Plug to 7/16 Jack
Inter-Series adaptor for connection between different connector families. N Type Plug to 7/16 Jack Straight Adaptor
| Complete Electronics Part No. | 742555511P3 |
|---|---|
| Manufacturers Part No. | 74-2555-511-P3 |
| Male/Female: | Male and Female |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 91g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 64
Materials
- Centre Contact: Phosphor Bronze
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size: 1
