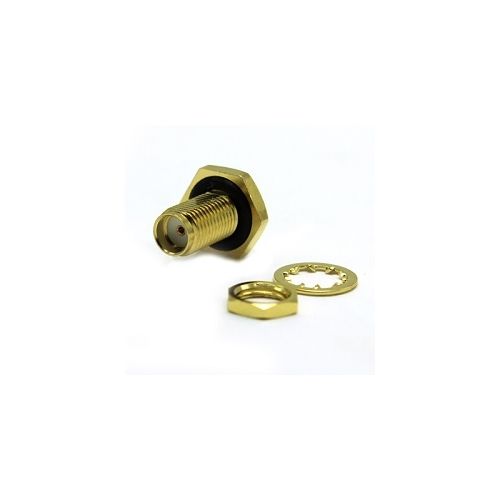

74-3049-501-D3 | 743049501D3 | SMA Jack to UFL Jack
SMA Bulkhead Jack to UFL Jack Adaptor.
| Complete Electronics Part No. | 743049501D3 |
|---|---|
| Manufacturers Part No. | 74-3049-501-D3 |
| Male/Female: | Female and Female |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 12GHz
- Dielectric W/V: 1000 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- Design Standard: IEC 60169-15
- RoHS3 Compliant
- Weight: 3.56g
- Mating Cycles: 500
- Contact Retention: 27N min
- Max Panel Thickness: 3mm
- Mating Force: 23Ncm
- Un-coupling Force: 23Ncm
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 65
Materials
- Centre Contact: BeCu
- Outer Contact: Brass
- Insulator: PTFE
- Locking Washer: Stainless Steel
- Flange Gasket: Silicone
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Pack Size: 1
