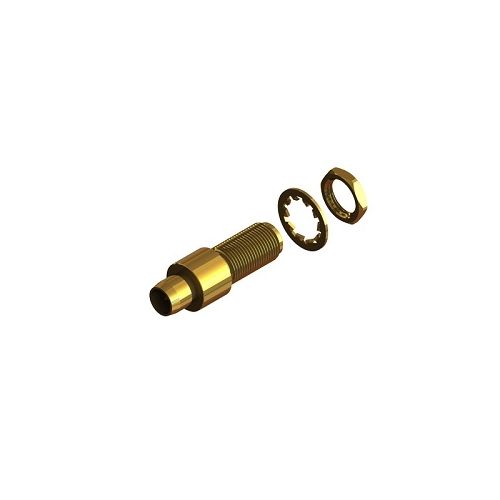

74-3057-512-D3 | 743057512D3 | SMA Bulkhead Jack to BMA Plug
Inter-Series adaptor for connection between different connector families. SMA Bulkhead Jack to BMA Plug Straight Adaptor
| Complete Electronics Part No. | 743057512D3 |
|---|---|
| Manufacturers Part No. | 74-3057-512-D3 |
| Male/Female: | Male and Female |
| Type | Panel / Bulkhead Mount |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 18GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 4.69g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Centre Contact Plating: Gold
- Outer Contact Plating: Gold
- Pack Size: 1
