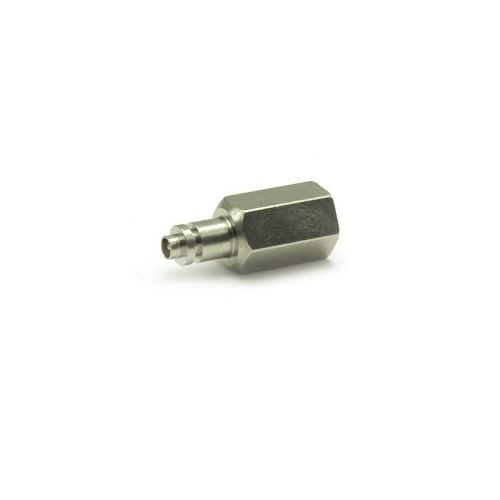

74-3449-511-IP67 | 743449511IP67 | SMC Plug to U.FL Jack
Inter-Series adaptor for connection between different connector families. SMC Plug to U.FL Jack Sealed to IP67 unmated Straight Adaptor
| Complete Electronics Part No. | 743449511IP67 |
|---|---|
| Manufacturers Part No. | 74-3449-511-IP67 |
| Male/Female: | Male and Female |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Up To 6GHz |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 2g
- Operating Temperature: -55 to +155°C
- IP Rating (Un-Mated): IP 67
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Internal Seal: Silicone
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size: 1
