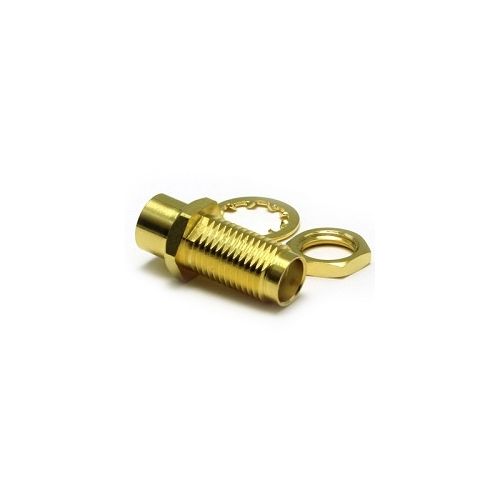

74-5130-501 | 745130501 | SMA Bulkhead Jack to MMBX Jack
SMA Bulkhead Jack to MMBX Jack to be used with MMBX Plug to Plug adaptor, to give a articulate connection between a bulkhead and a PCB
| Complete Electronics Part No. | 745130501 |
|---|---|
| Manufacturers Part No. | 74-5130-501 |
| Male/Female: | Female and Female |
| Type | Straight |
| Impedance | 50 Ohm |
| Working Frequency | Ultra HD (12GHz +) |
Description
Electrical Specification
- Impedance: 50 Ohm
- Frequency: Up to 6GHz
- Dielectric W/V: 1500 Veff
- Insulation: 5000 M Ohm
Mechanical Specification
- RoHS3 Compliant
- Weight: 2g
- Operating Temperature: -55 to +155°C
- IP Rating (Mated): IP 64
Materials
- Centre Contact: Beryllium Copper
- Outer Contact: Brass
- Insulator: PTFE
- Internal Seal: Silicone
- Centre Contact Plating: Gold
- Outer Contact Plating: Nickel
- Pack Size: 1
